Cryogenic Deflashing Machine from China PG-60T

Model No.︰

PG-60T

Brand Name︰

-

Country of Origin︰

China

Unit Price︰

US $ 33000 / set

Minimum Order︰

1 set

Share on:

Product Description

Specification

PG-60T
Size:1000mm*1000mm*1950mm
Weight:700kg
Power supply: AC380V 50HZ 3Ph
Electrical capacity: 6kw
Temperature: -130C--50C
Pressure:0.5-0.7Mpa
Barrel capacity: 20L
Wheel speed: 3000rpm-7200rpm
Cooling media: liquid nitrogen
Material: SUS304
Press Button Operation Panel

Application
A. O rings, irregular rubber parts with different material and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulding plastic parts
E. R & D part runs
F. Die casting products, like zinc aluminum, magnesium alloy

Function

Our machine is widely used in removing the flashed of small rubber and plastic parts like Orings, gaslets and other molded parts.
With the cryogenic processing technology, the flashes are firstly freezed and then shoted down the high speed projection media(Ploycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be impoved greatly.


Main benifits

High efficiency: The machine can replace about 60-80 worker to removing the flashes.

High precision: It can remove small and hiddened falshes which cannnot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.



Payment Terms︰ T/T/LC
Lead Time︰ 30Days after the prepayment
Standards Certificate︰ ISO9000:2000

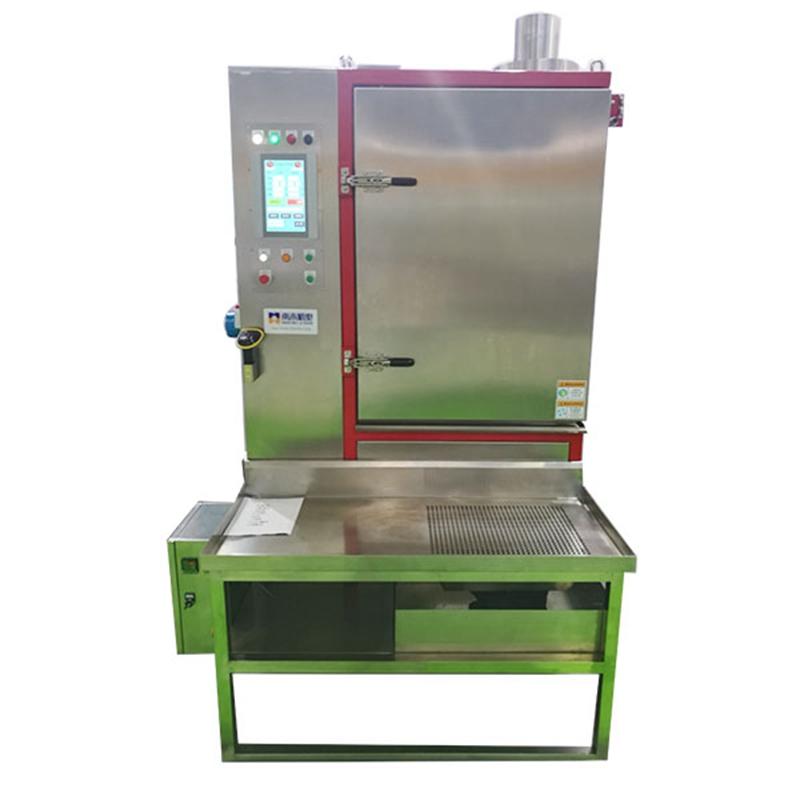

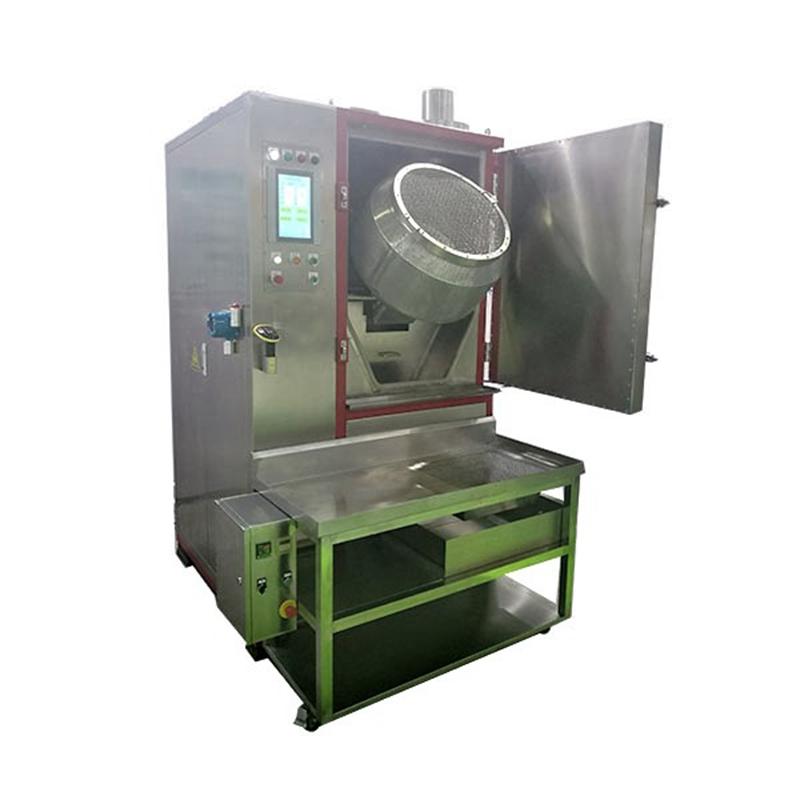

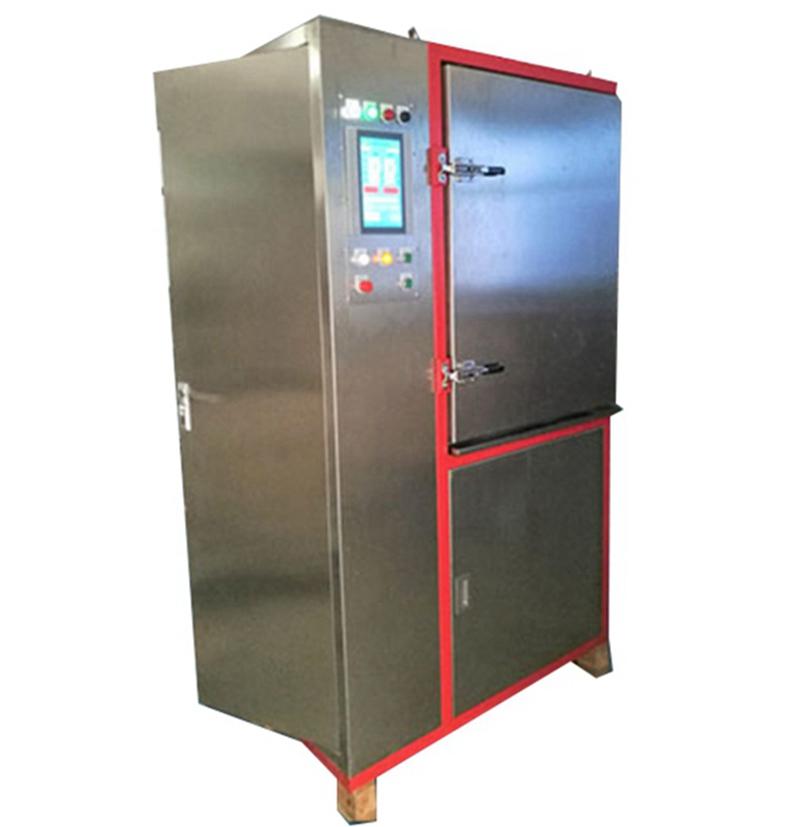

Product Image
